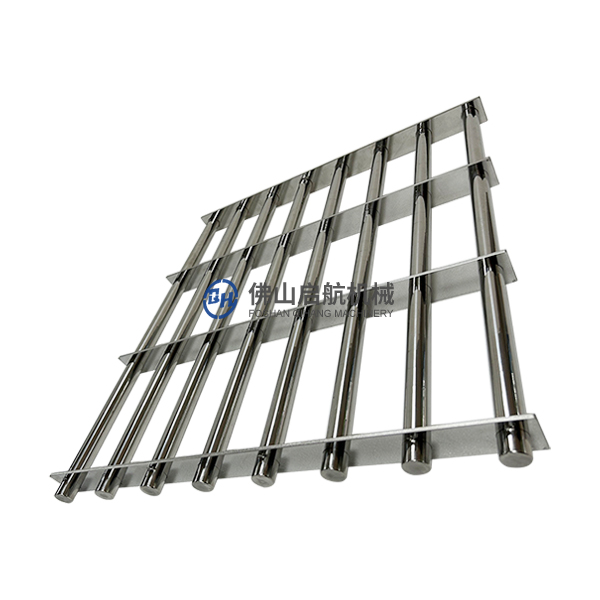

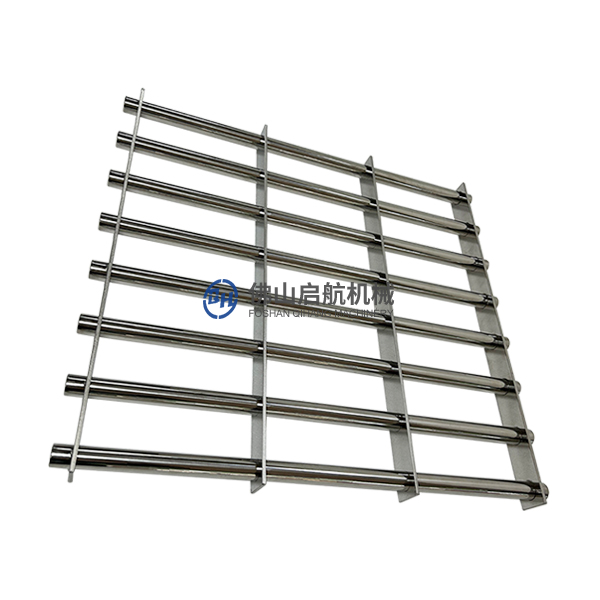

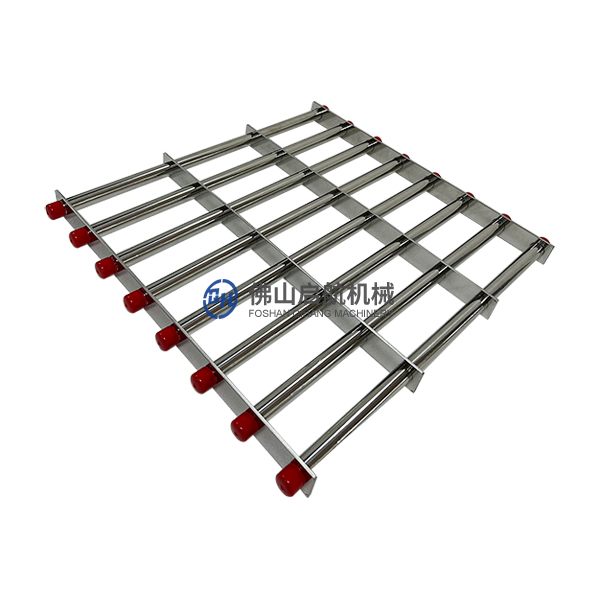

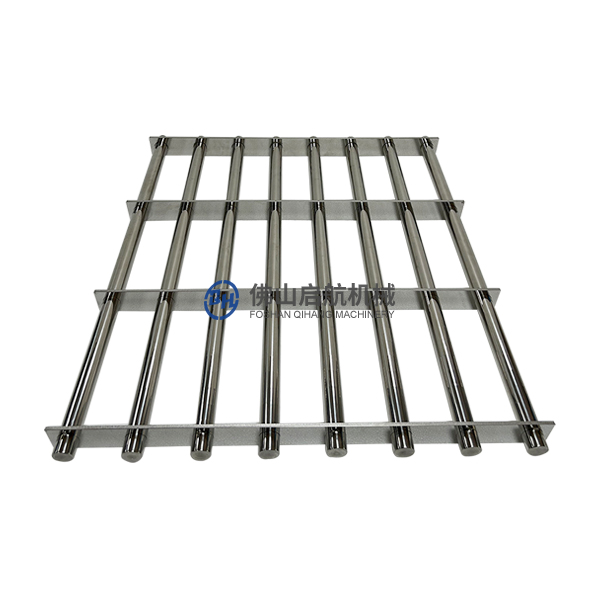

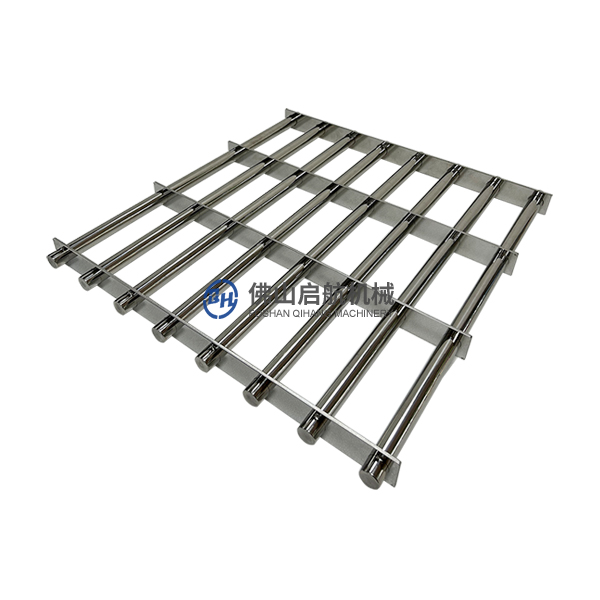

This product is made of magnetic bar according to different requirements in accordance with different shapes and sizes, through stainless steel plate fixed molding. The magnetic frame is placed and fixed in the hopper, discharge port, conveying pipeline, etc. When the material flows through the magnetic frame, the iron-containing impurities will be firmly adsorbed on the magnetic bar, so as to achieve the effect of purifying the material and protecting the operation. Magnetic frame can be used to filter fine iron impurities in powder, particles, liquid, slurry, gas materials.     Applicable to ceramics, electric power, mining, plastics, chemical, rubber, pharmaceutical, food, pigments, dyes, electronics, metallurgy, new energy lithium and other industries.

The magnetic bar is made of high-quality stainless steel tube and high B-value rare earth alloy iron boron, and the use of special production methods can be combined on the fixed frame to form a magnetic filter. When the iron-containing material passes through, it is attracted by the magnetic rod, and the iron-containing material is firmly adsorbed on the tube wall of the magnetic rod to ensure the integrity of the equipment and the safety of the product.

1. Surface treatment: mirror polishing, wire polishing; 2. Surface material: SS304, SS316; 3. Magnetic strength grade: 3000Gs, 10000Gs, 12000GS; 4. Operating temperature < : 80℃, 100℃, 120℃, 150℃, 180℃, 200℃, 250℃, 300℃; 5. Size shape: Size shape can be made into multi-layer type, circular circle, irregular polygon, semi-circle, etc. 6. Cleaning method: conventional type, casing easy to clean type; 7. Accessories can be selected: handle, guide rod, guide plate.
