Pipe type slurry iron remover is mainly used in slurry, fluid, semi-fluid and other fluids to remove iron impurities and other ferromagnetic particles, so that the material to keep clean, but also play a role in protecting downstream production equipment. This product is made of high magnetic permanent magnet material, wrapped in food safety and hygiene grade stainless steel, which can ensure full removal of impurities and maximize the fluidity of the medium. At the same time, the pipe type slurry can be polished according to the needs of users, to meet the health and safety requirements of various industries. Widely used in ceramics, electric power, mining, rubber, plastics, chemicals, food, pigments, environmental protection, dyes, pharmaceuticals, electronics, metallurgy and so on.

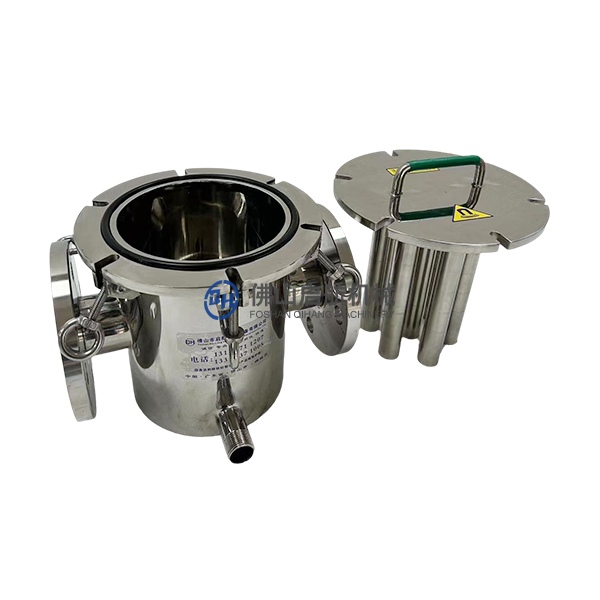

This product is composed of magnetic rod and tank body, installed and connected to any position of the material conveying pipeline, in order to achieve the purpose of removing iron impurities. When the iron-containing material passes through, it is attracted by the magnetic bar, and the iron impurities are firmly adsorbed on the tube wall to ensure the integrity of the equipment and the safety of the product. No energy consumption, no pollution, strong magnetism and simple operation are the significant advantages of the permanent magnet equipment series. Flanges, clamps, bolt plates or quick-release clips can be selected according to the characteristics of the product to easily install, remove and clean the magnetic parts. Also can be customized according to user needs easy to clean fluid iron remover.

1, magnetic bar combination can be arranged according to the requirements of use, according to the pressure of the application pipe, can be divided into clamp type and flange type. 2, Pipe frame material is made of 304 or 316L stainless steel, corrosion resistance, no pollution. 3, The surface can be polished, can meet the requirements of food or drug use grade. 4, Standard operating temperature < =80℃, for special environmental needs, we can provide the highest operating temperature is 350℃. 5, The highest magnetic force can reach 12000GS, easy to clean 10000GS, for customers to choose. 6, If there are special requirements, can be customized design.
