The working principle of the drawer iron remover

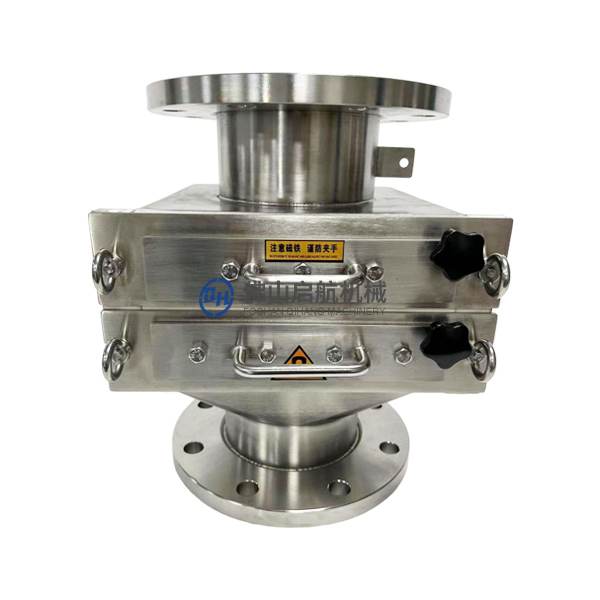

Drawer iron remover is composed of high-performance magnetic bar and stainless steel pipe body, magnetic bar magnetic field is strong, can reach 12000GS, drawer type iron remover is mainly used for sorting powder, fine granular materials in the fine iron impurities. A number of magnetic grilles are placed inside the drawer iron remover box, and the magnetic bars of the upper and lower grilles are staggered. This design avoids the escape of iron filings from the magnetic blind area, so that the materials through the drawer iron remover fully contact the surface of the magnetic bar, and more effectively sort out the small iron impurities in the materials. Drawer type iron remover is widely used in food, food additives, pharmaceutical, feed, fine chemical, lithium battery, pigment, carbon black, plastics and other industry production lines.
Drawer type iron remover principle introduction
Drawer type iron remover optional features: drawer type iron remover surface treatment: mirror polishing, wire polishing, sandblasting; Shell material: SS304, SS316; Drawer type iron removal bar magnetic strength, etc. : 3000Gs, 8000Gs, 10000Gs, 12000GS; Drawer type iron remover operating temperature < : 80℃, 100℃, 120℃, 150℃; Drawer type iron remover connection: flange, quick clamp joint, soft connection flange, straight pipe; Drawer type iron remover cleaning method: conventional type, sleeve easy to clean type; The drawer type iron remover can select accessories: material flow control valve, equipment support, cleaning and replacement magnetic grille.
Drawer type iron removal frequency: according to the content of iron impurities in the treatment of materials, the amount of material processing per hour and other parameters to determine, the general magnetic rod surface adsorption of powdered iron impurities thickness should not be more than 10mm, regular timely cleaning, so as to maintain a good use of the effect.
Drawer type iron remover cleaning steps: When cleaning the drawer type iron remover, first remove the magnetic grid in turn, clean up the iron impurities adsorbed on the surface of the magnetic bar, and then install the magnetic grid in the box in turn, fixed in place, to avoid bad sealing caused by material leakage through the gap. When cleaning the iron impurities on the surface of the magnetic rod, you can use thick cotton gloves, rags, trays and other tools, and if necessary, you can clean with water.
